Feeder systems
Controls for all systems

Not all simple ideas are great, but all are characterized by their great thoughts simplicity.
                            Alexandre Vinet



Control unit V-100



Controlling of 1 vibrator

Continuously adjustable vibration
- Soft start
- External control (On/Off)

Dimension:                  150 / 80 x 220 mm (W / H x D)
Main supply:                1x230 VAC, 50 Hz
Weight:                         800 g
Colour:                          dark grey



Control unit V-100F




Controlling of 1 vibrator with adjustable frequency

Continuously adjustable vibration
- Continuously adjustable frequency
- Soft start
- External control (On/Off)

Dimension:                  150 / 80 x 220 mm (W / H x D)
Main supply:                1x230 VAC, 50 Hz
Weight:                          1.2 kg
Colour:                          dark grey


Control unit V-210





Controlling of 2 vibrators and 1 bunker

- Automatic cut integrated when combining a boal with a
  linear feeder.
- On/off switch delay continuously adjustable
- Soft start
- External control (On/Off)

Dimension:                  250 / 100 x 290 mm (W / H x D)
Main supply:                1x230 VAC, 50 Hz
Weight:                          1.8 kg
Colour:                          grey


Control unit V-210F





Controlling of 2 vibrators and 1 bunker with adjustable frequency

- Automatic cut integrated when combining a boal with a
  linear feeder.
- On/off switch delay continuously adjustable
- Soft start
- External control (On/Off)

Dimension:                  250 / 100 x 290 mm (W / H x D)
Main supply:                1x230 VAC, 50 Hz
Weight:                          2.2 kg
Colour:                          grey

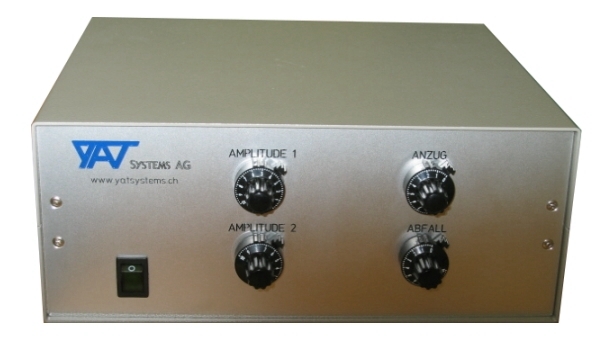

Control unit W-330



Detecting and analysing bimetals

- Automatic ejection integrated
- Continuously adjustable limits

Dimension:                 250 / 100 x 290 mm (W / H x D)
Main supply:               1x230 VAC, 50 Hz
Weight:                        1.8 kg
Colour:                         grey



Control unit S-721



Steering of magnetic riveting press and 1 vibrator

- 6-digit counter with LCD display
- Magnetic activation through discharge of condensators
- Reproducible, cinsistent strike force
- Continuously adjustable strike force and vibrator speed
- Increased security by galvanic  separation
- Radio and TV suppression

Dimension:                330 / 142 x 250 mm (W / H x D)
Main supply:              1x230 VAC, 50 Hz
Weight:                        8 kg
Colour:                        grey

Download PDF



Customer specific control equipments




- Stored programmed control e.g. product Siemens
- Pneumatic controls e.g. product Festo
