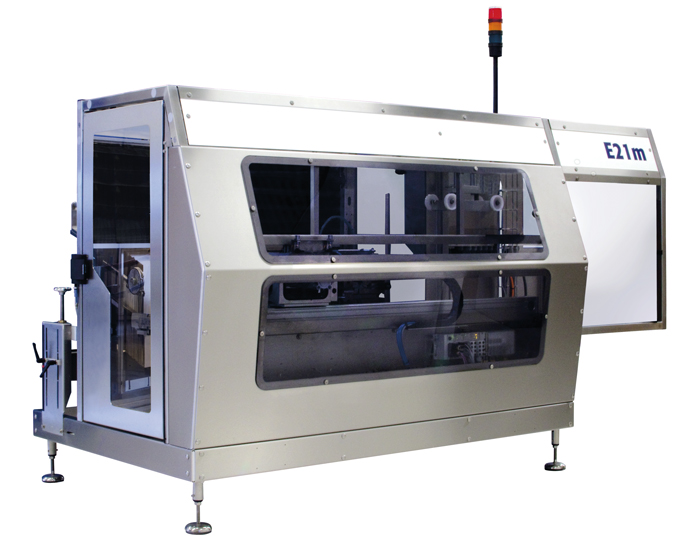

The machine is of a solid design in stainless steel and erects, folds and seals corrugated board cases with hot melt
or tape. It can be supplied with either right- or left hand discharge direction. It is easy to handle, require a minimum
of maintenance and is easy adjustable between different case sizes.
Case sizes: Length 200 still 600 mm
Width 150 still 400 mm
Height 100 still 400 mm
Capacity: still 30 Cases/min
Dimension: 2880 / 1870 x 2430 mm (L / W x H)
Weight: 400 kg
Electrical: 3x400 VAC, 50 Hz
Air pressure:
6 bar
 |
