| Sorting by vibration |
|
| |
|
 |
A cylindrical or conical bowl or a stepping bowl puts the bulk goods
into the right position. The bowl is made of stainless steel or plastic
and its interior is coated if necessary.
The linear feeder serves as a sorting unit or buffer section between the bowl and the removal part. |
| |
|
| |
Bowl feeders |
| |
cylindrical
Ø 80 still 700 mm |
conical
Ø 100 still 900 mm |
stepped
Ø 100 still 900 mm |
| |
|
| |
Special Finishes:
a) on demand, thread, tracks and heights made to measure or drawing.
b) execution with more tracks and principles.
c) Seam welding for chemical, alimentary and pharmaceutic sectors. |
| |
|
| |
Vibrating basements
Ø 100 still 500 mm |
| |
|
| |

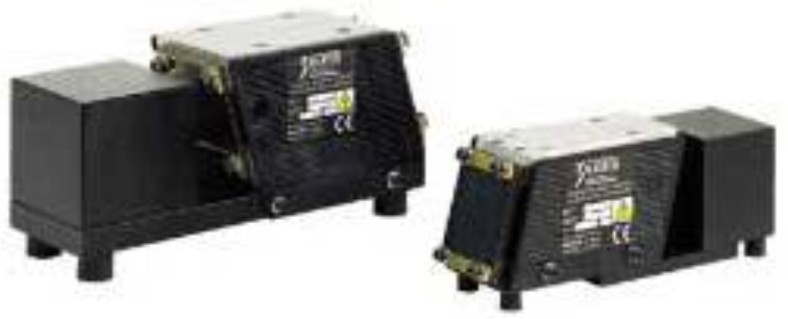

Linear vibrators
Lenght x Width: 100 x 53 mm
Lenght x Width: 270 x 70 mm
Lenght x Width: 330 x 100 mm |
| |
|
| |
Noice protection
To reach a noise reduction of about 30 dBA, a two-piece protection
casing is mounted over the vibrator and the bowl. It is made of
stainless steel and has an inside wall of foam. A cover of acrylic
glass opening on one side lies on the casing. |
| |
|
| |
|

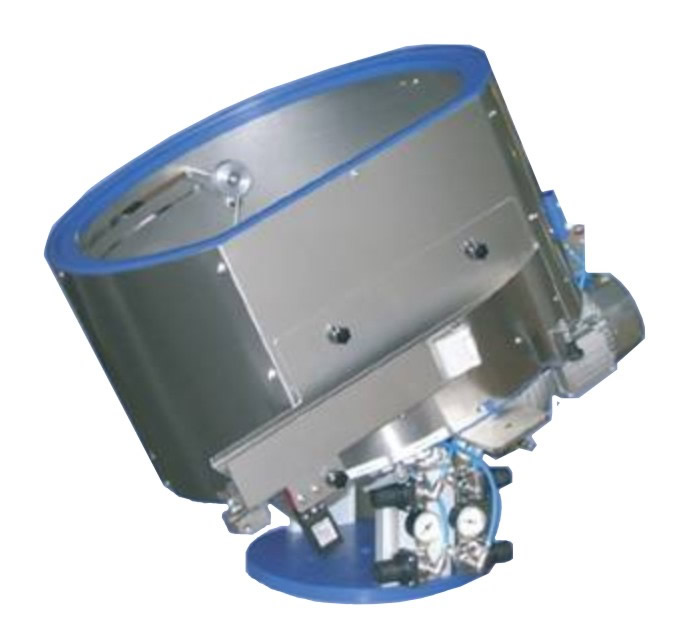

| Sorting by mecanic |
|
| |
|
 |
It represent the best alternative to the vibratoring orientator for the oriented feeding of caps and plastic or aluminium capsules and of particular mechanical smallware like: dispenser, pumps, trigger or aerosol valves with straw.
His reliability and peculiarity as well as the high speed of the feeding and his quietness make it the most used instead of the vibrator.
The units can be equipped with frictinned motor, with fixed or adjustable speed. |
| Ø 500 still 2'000 mm |
|
| |
|
| |
|

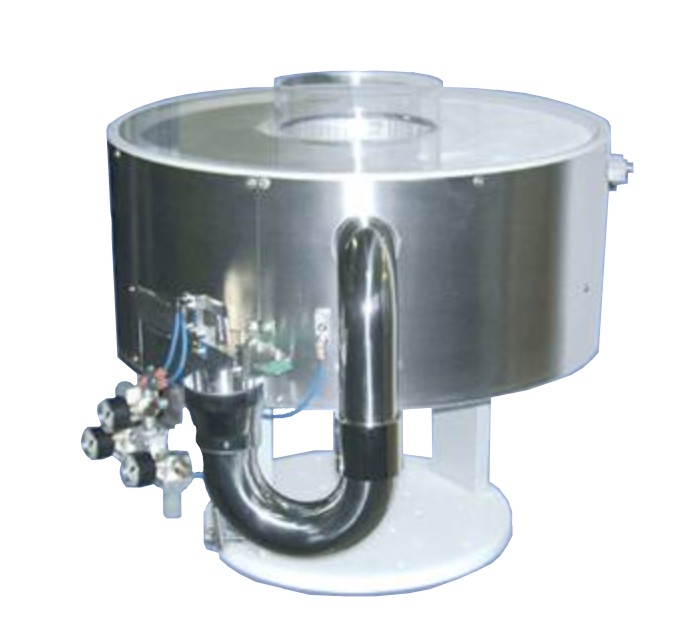

| Sorting by centrifuge |
|
| |
|
 |
Silent, fast, reliable, the centrifugal feeder has been designed to meet the requirement of increasing productivity of the lines, taking into account the acoustic problem.
It feeds and positions caps of different shapes and sizes, with diameter bigger than the height, in large amounts up to 40'000 p/h.
|
| Ø 600 still 1'000 mm |
|
| |
|
| |
